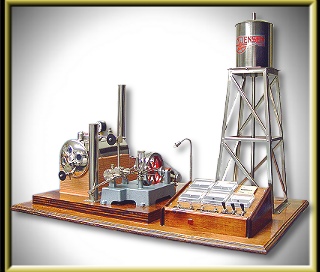

Jensen Model # 51 Deluxe Power Plant

Model # 51

° Our Large Capacity 5" Solid Brass Boiler
° Exclusive Hotwatt ^Ž 110V. Immersion Heater (3 each)
° Massive Cast Iron Engine Base and Axle Journals
° Heavy Cast Iron Flywheel with PTO "V" grooves

° High Torque Engine with
Double Acting Cylinder and Slide Valve
° 1" Bore x 11/4" Stroke
° Reversible with Multiple PTO's
° Beautiful Mahogany or Natural Oak Finished Wood Base

The Model # 51 is perfect for your Power Company Visitor Center, University Physics Department or any Public Relations Display where you want a truly Memorable Visual Display of the Principals of Thermal, Electrical or Mechanical energy generation and transmission.

The "World Famous" Model 51
The Ultimate Jensen Steam Engine Power Plant and Demonstration Center
Deluxe Brass & Cast Iron Power Plant
34" x 24" x 30"
Weight : 75 lbs.
Accessories

Orders for this item are no longer being accepted

JENSEN STEAM ENGINE MFG. CO., INC.
700 Arlington Ave.
Jeannette, PA 15644 USA

Customer Service/Technical Support Help Line,
(800) 525-5245
World Wide 24 Hour, Dedicated Fax Line
(724) 523-5588
E-MAIL TO:
Sales@JensenSteamEngines.com
TOM JENSEN, JR., M. E., PRESIDENT

Includes the following special features:
1 inch bore Cylinder 5 inch Cast Iron Flywheel 3 Water Level View Ports Control Panel with Full Metering and Switching Our exclusive AC/DC Generator Adjustable Throttle Control Working Flyball Governor DC Saw Motor	Working Stainless Water Tower Engine driven Feedwater Pump Stainless Smoke Stack Dual open window Crosshead Guide Pressure Gauge Deluxe Stainless Exhaust Stack System

Designed by Tom Jensen, Sr. in 1947 and perfected in 1977 by our Instrument Engineer, Randy Calhoun, this massive power plant truly is the Ultimate Steam Engine. Created by mating our # 50 engine with Randy's beautifully designed and fully functional control panel with it's electronic metering devices, the # 51 Power Station is a wonderful sight to see as well as hear. Some of it's many exclusive features include a unique A/C-D/C generator, meter banks for low voltage A/C and D/C production and the high voltage boiler heater controls and switches. This 75 pound monster, also demonstrates the various voltage outputs and "Real World" operating dynamic factors, such as the increased BTU requirements during peak load demands. With it's 30" tall brass water tower, (that can be customized with your name or company logo). The # 51 can operate up to 6-8 hours before refilling is required. For the past 20 years, power companies in North America have used the Jensen # 51 Power Station to demonstrate and educate those involved and interested in the power generation and transmission fields. Today, the Steam Engine Collector who demands the absolute finest product of it's kind, patiently waits his turn to acquire one of the 2 hand-crafted units designated for private sale, from the 4 currently available each year.
