Jensen's Whatchmacallits, Doohickies and Thingamabobs

	The Real Names for the Whatchmacallits, Doohickies and Thingamabobs that make up a Jensen Steam Engine

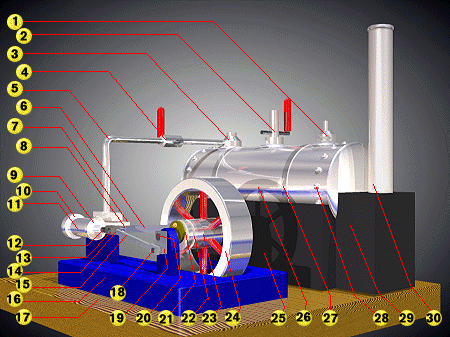

1 -- Pressure Relief 2 -- Whistle 3 -- Steam Dome 4 -- Throttle Valve 5 -- Steam Line 6 -- Eccentric Rod 7 -- Steam Chest 8 -- Slide Valve 9 -- Stuffing Box 10 --Cylinder Head 11 -- Cylinder 12 -- Piston Rod 13 -- Wrist Pin 14 -- Cross Head 15 -- Connecting Rod	This Artist's Rendering Depicts a 1940's, Model 25, Jensen Steam Engine	16 -- Engine Base 17 -- Wooden Base 18 -- Crank Pin 19 -- Crank 20 -- Crank Shaft 21 -- Eccentric 22 -- Power Take Off 23 -- Flywheel Hub 24 -- Flywheel 25 -- Fire Box 26 -- Boiler 27 -- Boiler Strap 28 -- Rivet (pre-1940's) 29 -- Stack Base 30 -- Stack

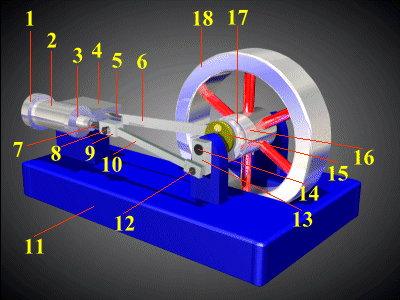

	DETAIL OF THE JENSEN MODEL 25 STEAM ENGINE
1 -- Cylinder Head 2 -- Cylinder 3 -- Stuffing Box 4 -- Steam Chest 5 -- Slide Valve 6 -- Eccentric Rod 7 -- Piston Rod 8 -- Wrist Pin 9-- Cross Head		10 --Connecting Rod 11 -- Engine Base 12 -- Crank Pin 13 -- Crank 14 -- Crankshaft 15 -- Eccentric 16 -- Flywheel Hub 17 -- Power Take Off 18 -- Flywheel
